Spicer 6.3-4-1481-1X 1760 Series Half Round End Yoke
6.3414811X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
6.3-4-1481-1X
JOINT SERIES:1760

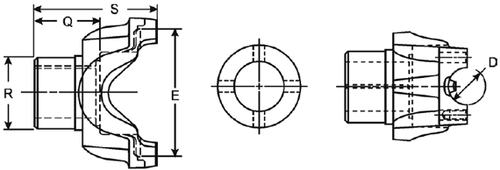

D DIMENSION:1.938
E DIMENSION:7.094
YOKE STYLE:HR
Q LENGTH THRU HOLE:2.500
R HUB DIAMETER:2.938
S CENTERLINE TO END:5.250
SPLINE COUNT:44
SPLINE OD:2.274
NOTES:
